ITiGER Product

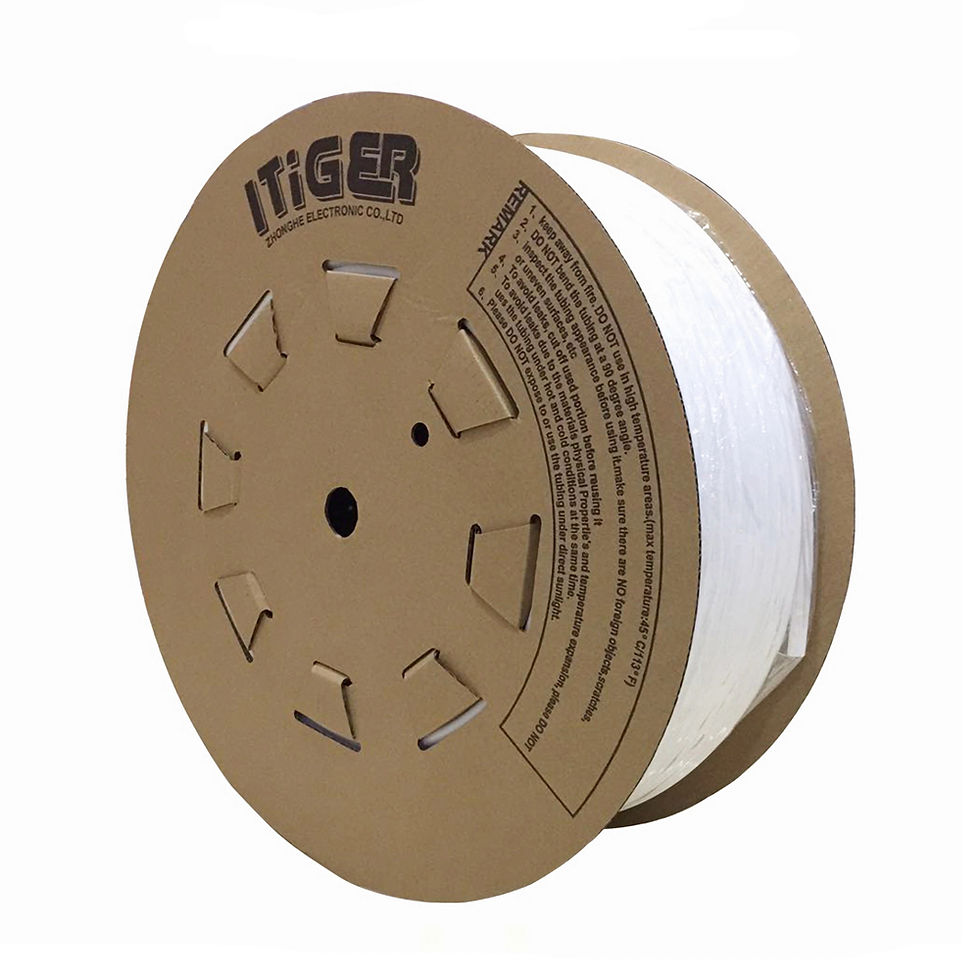

1/4" LLDPE Tubing, 1/4 Inch Flexible Water pipes NSF Certified（300 M/984 Feet）

1/4" LLDPE Tubing, 1/4 Inch Flexible Water pipes NSF Certified（300 M/984 Feet）

PART NO.
Material
PE
PERT
Color

Product Details

1.

Features

PART NO
Material
O.D.In.
I.D. In.
Wall
Reel Length (M)
Water Temperature
PE-2
LLDPE
1/4"
0.17"
0.04"
300
5-45°C
PE-2.5
LLDPE
5/16"
0.2"
0.055"
200
5-45°C
PE-3
LLDPE
3/8"
0.25"
0.059"
150
5-45°C
PE-4
LLDPE
1/2"
0.356"
0.061"
80
5-45°C
PERT-2
PERT
1/4"
0.17"
0.04"
300
5-80±5°C
PERT-3
PERT
3/8"
0.25"
0.059"
150
5-80±5°C
PART NO.
2.

Features

DMfit tubing is produced from an advanced grade of low density polyethylene. Its grePTESt advantage is superior environ-mental

stress cracking resistance (ESCR), greatly exceeding that of ordinary polyethylene tubing as measured by ASTM D-1693 (IGEPAL) tests.

Environmental stresses that can shorten the service life of tubing include chemical exposure, aging connections with barb-type fittings, or high vibration loads with connections to compression fittings. Our tubing is compliant to ANSI/NSF-51 and FDA requirements for food contact applications. Our tubing is available in multiple coding colors, and offers the user.

Dimensional stability

Uniformity and long-term strength

Higher burst pressure

Greater tensile strength

Wide range of available colors.

Suitable for use with ITiGER products and those of other manufacturers.

3.

Working Pressure and Temperature

Size
1/4"
5/16"
3/8"
1/2"
Parameter
6.35mm
8mm
9.53mm
12.7mm
Pressure
230psi
Tube Tolerances
Temperature
.
Size
Parameter
170psi
Air-20°C (-4°F)~65℃(150°F) Liquid
±0.1mm (±0.00394")
 Pressure values are based on PE tube used at room temperature.
Consult our representative when using at continuous elevated temperature and pressure.
4.

Colors Available

Color
LLDPE
LLDPE-1
LLDPE-2
LLDPE-3
PERT
PERT-1
1/4"
5/16"
3/8"
1/2"
1/4"
3/8"
White
Blue
Yellow
Red
Gray
Green
Dark gray
Parameter
LLDPE
PERT
Note: △ indicates a customizable color, which may not be in stock. Please contact us to confirm.
